Samsung / 980 PRO

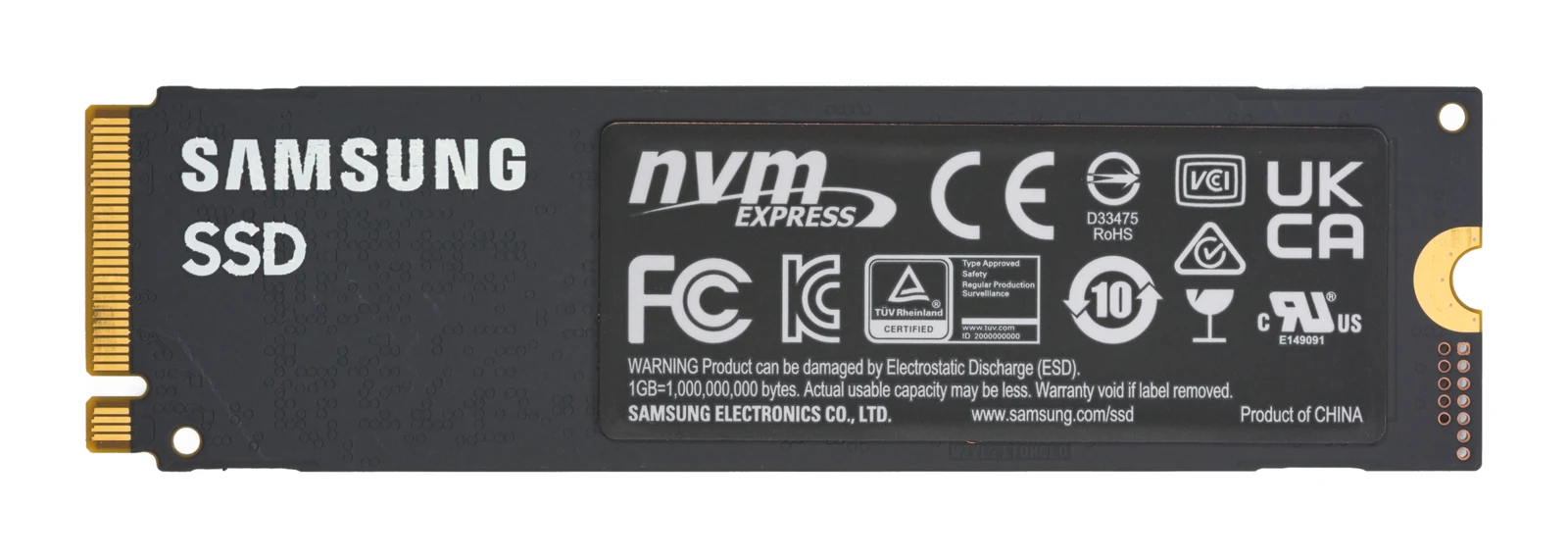

Samsung 980 PRO · MZ-V8P1T0BW · 1000 GB

Name: Samsung 980 PRO · MZ-V8P1T0BW · 1000 GB
Brand: Samsung
SKU: MZ-V8P1T0BW

P/N: MZ-V8P1T0BW

NVMe SSD1000GB

SSD selected by interface, dimensions and application. Capacity: 1000 GB (decimal) · Interface: PCIe 4.0 x4 / NVMe 1.3c · Form factor: M.2 2280

01 / Specifications

MPN / P/N: MZ-V8P1T0BW
Manufacturer designation: 980 PRO
Capacity: 1000 GB (decimal)
Interface: PCIe 4.0 x4 / NVMe 1.3c
Form factor: M.2 2280
NAND: Samsung V-NAND 3-bit MLC (TLC)
Heatsink: Not included
Selection limits: Requires an M-key PCIe/NVMe-capable M.2 slot with 80 mm mounting support. Check clearance for factory heatsink variants. Not M.2 SATA.

Specification source: Samsung ↗
Checked against documentation: 16.10.2026

“Up to” figures follow manufacturer test conditions; real throughput depends on workload and host system.

Related variants

SamsungConfiguration and supply on request

P/N: MZ-V8P250BW

NVMe SSD250GB

SSD selected by interface, dimensions and application. Capacity: 250 GB (decimal) · Interface: PCIe 4.0 x4 / NVMe 1.3c · Form factor: M.2 2280

SamsungConfiguration and supply on request

P/N: MZ-V8P500BW

NVMe SSD500GB

SSD selected by interface, dimensions and application. Capacity: 500 GB (decimal) · Interface: PCIe 4.0 x4 / NVMe 1.3c · Form factor: M.2 2280

SamsungConfiguration and supply on request

P/N: MZ-V8P2T0BW

NVMe SSD2000GB

SSD selected by interface, dimensions and application. Capacity: 2000 GB (decimal) · Interface: PCIe 4.0 x4 / NVMe 1.3c · Form factor: M.2 2280

Samsung / 980 PRO

Family view; confirm the actual configuration separately.
